Industrial-Grade Hardware Design
Every component is engineered for stability, safety, and long-term reliability in real-world EV charging environments.
Smart Authentication
Start a charging session quickly using an RFID card or the TERA Green app. Users enjoy a seamless charging experience, while operators can easily manage accounts and usage history.
Outstanding Durability
Engineered to meet the IP65 protection rating, with flame-retardant materials and a robust enclosure to support reliable operation across a wide range of environmental conditions.

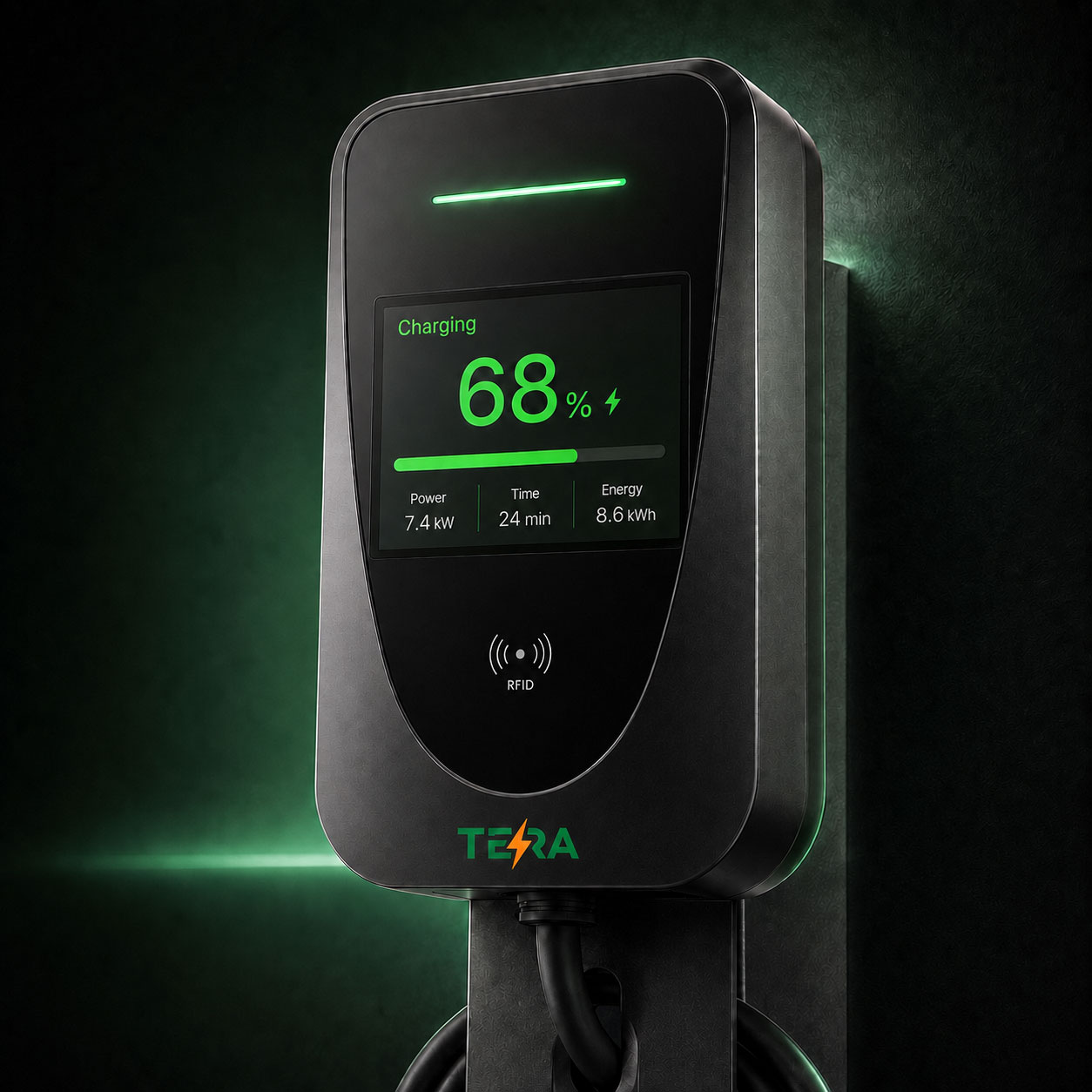

Intuitive Display
The LCD clearly displays charging status, charging time, power output, and other essential information, allowing users to monitor the entire charging process at a glance.
Smart Management Flexible & Connected
Connect, monitor, and optimize your entire charging network through a unified management platform powered by the TERA Green app.
Remote Control
Manage and monitor charging stations anytime, anywhere through the TERA Green app. Device status, charging sessions, and operational activity are centralized in one intuitive interface.

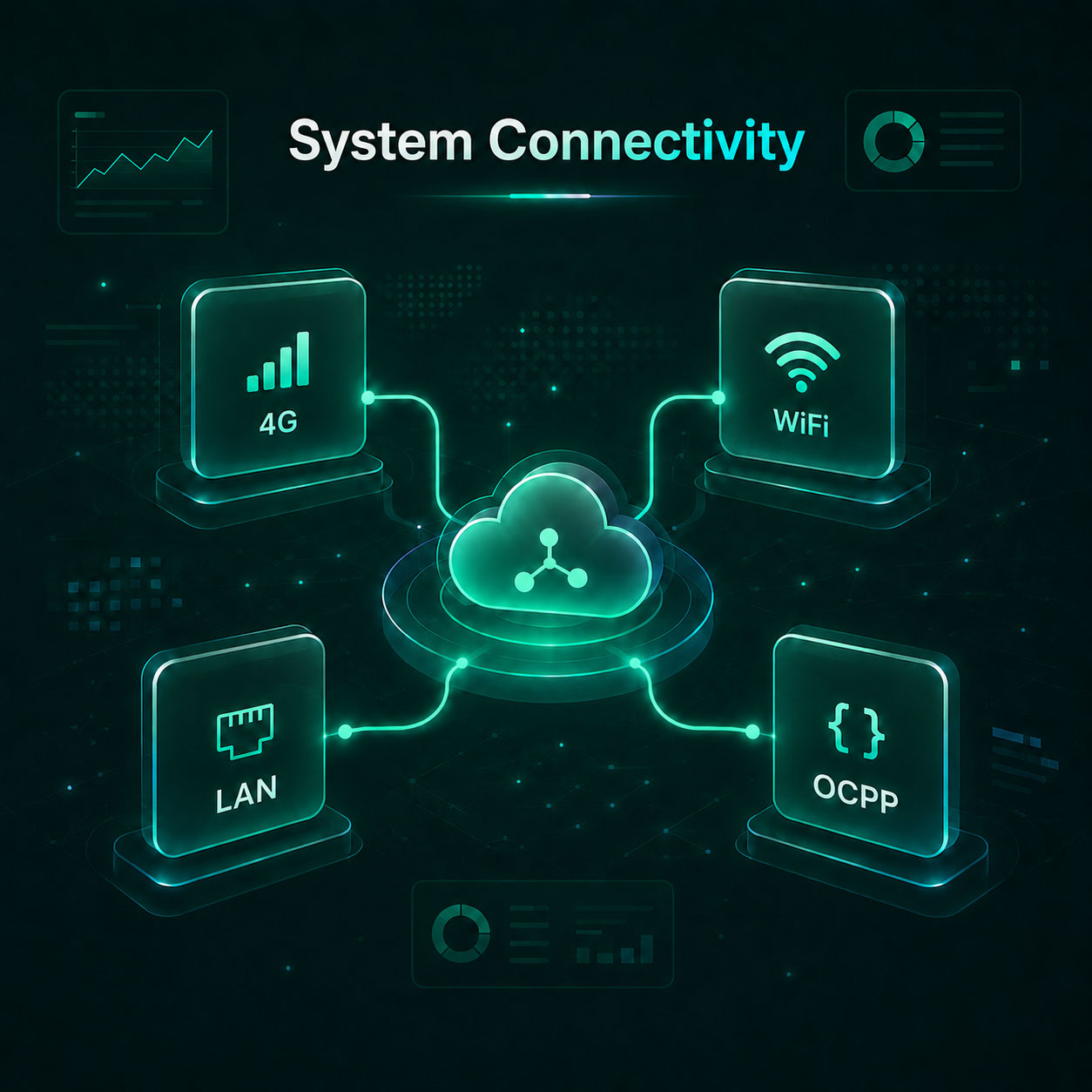

Open Connectivity
Supports 4G, Wi-Fi, and LAN connectivity along with OCPP 1.6/2.0, enabling seamless integration, connectivity, and scalable expansion to meet operational needs.
OTA Updatess
Remote software updates keep the system optimized and operating reliably without requiring on-site access to each individual charging unit.
Multi-Layer Protection Comprehensive Safety
TERA integrates multiple layers of protection to minimize operational risks, helping the charging system operate more reliably and safely for both users and equipment.
Comprehensive Protection
Integrated protection against overload, short circuits, current leakage, and surge events, helping the system proactively reduce operational risks throughout the charging process.
Smart Automatic Shutdown
Automatically stops charging when the battery is full or disconnects power when no load is detected, helping reduce overheating risks and support safer real-world operation.
- Auto Stop When Fully Charged
- No-Load Power Cutoff
- Overheat Risk Reduction
Immediate Fault Response
Equipped with an emergency stop button, allowing users or operators to intervene immediately when needed and enhance safety for both people and equipment.
Technical Specificationss Clear, Standardized & Deployment-Ready
A consolidated overview of key TERA charging station specifications for consultation, deployment, and evaluating suitability for real-world operating requirements.
Charging & Electrical Specifications
| No. | Item | Specification |
|---|---|---|
| 1 | Rated Power | 11kW / 22kW |
| 2 | Number of Charging Ports | 01 Port |
| 3 | Charging Connector Standard | Type 1 / Type 2 / GBT / NACS (optional) |
| 4 | Input Voltage | AC 380V ± 20V (3-phase) |
| 5 | Frequency | 50Hz ± 10Hz |
| 6 | Current | 16A/phase (11kW) 32A/phase (22kW) |
| 7 | Protocol | OCPP 1.6 / OCPP 2.0 |
Connectivity & Structure
| No. | Item | Specification |
|---|---|---|
| 8 | Connectivity | 4G; Wi-Fi; LAN |
| 9 | Display | 4.3-inch LCD (optional) |
| 10 | Protection Rating | IP65 |
| 11 | Operating Temperature | -30°C to 50°C |
| 12 | Material | Flame-Retardant PC Plastic |
| 13 | Dimensions | 192 × 300 × 102 mm |
| 14 | Control | TERA Green App |
